Demo 2: AI-Driven Scheduling

EdgeRIC-RT puts a scheduler muApp in the gNB’s loop every TTI. With four UEs, you switch schedulers while you watch Grafana, then train a PPO scheduler online.

Every TTI the OCUDU gNB's MAC scheduler sends each UE's CQI and backlog to rt_bridge in jrtc, which passes it to the scheduler muApp; the muApp's per-UE weights travel back the same way, and the gNB applies them in exactly the next DL slot

1. Run the System

Open four terminals on the testbed host.

Terminal 1: RAN

cd <your clone of edgeric-ocudu-jbpf>
export KUBECONFIG="$(k3d kubeconfig write janus-cluster)"
bash scripts/setup_zmq_chan_demo.sh 4 --ran --edgeric

The script stops everything still running, provisions four subscribers in the core, restarts jrtc-0 with the EdgeRIC-RT codelets and the rt_bridge xApp, starts the broker for four UEs and the gNB, and then shows the gNB console. It takes about 2 minutes; start Terminal 2 when the console appears.

== [1/7] stop everything ==
    UPF iperf3 stopped
    UE iperf3 stopped
    tcp_probe stopped
    UE stopped (live now: 0)
    gNB stopped; log truncated (was 8.0K)
    broker stopped
  ues stopped
  broker stopped
== [2/7] core: IMSIs 999700000000001..999700000000004 ==
  provisioned (0 added)
== [3/7] fresh jrtc-0 (clean app registry + jbpf IPC peer) ==
  jrtc-0 ready
== [4/7] stage broker, UE and gNB configs; netns for 4 UE(s) ==
  ue1: pod 10.201.1.1 <-> netns 10.201.1.2
  ue2: pod 10.201.2.1 <-> netns 10.201.2.2
  ue3: pod 10.201.3.1 <-> netns 10.201.3.2
  ue4: pod 10.201.4.1 <-> netns 10.201.4.2
== [5/7] broker (4 UE) ==
  [broker] C++ single-thread, gNB tx ipc:///tmp/zmq/gnb_tx -> 4 UE(s) -> gNB rx ipc:///tmp/zmq/gnb_rx
  [broker] gNB receiver noise -65.0 dBFS
  [broker]   UE1: rx ipc:///tmp/zmq/ue1_rx  tx ipc:///tmp/zmq/ue1_tx  (DL +0.0 dB, UL +0.0 dB)
  [broker]   UE2: rx ipc:///tmp/zmq/ue2_rx  tx ipc:///tmp/zmq/ue2_tx  (DL +0.0 dB, UL +0.0 dB)
  [broker]   UE3: rx ipc:///tmp/zmq/ue3_rx  tx ipc:///tmp/zmq/ue3_tx  (DL +0.0 dB, UL +0.0 dB)
  [broker]   UE4: rx ipc:///tmp/zmq/ue4_rx  tx ipc:///tmp/zmq/ue4_tx  (DL +0.0 dB, UL +0.0 dB)
  [broker] running (chunk 11520, queue 23040, pacing DL at srate)
== [6/7] gNB (broker mode, dynamic pod-IP NG-U bind) ==
  gnb tx_port=ipc:///proc/52540/root/tmp/zmq/gnb_tx
  gnb started (bind=10.42.0.92)
  gnb procs=1 ngsetup=1
  == bridge.conf: inline=off lead=1 cpu=- fifo=0 ==
  == codelets -> srs-gnb-du1-0/ocudujbpf:/codelets/edgeric_rt ==
  == jbpf LCM forwarder in jrtc-0 ==
    fwd: fwd 127.0.0.1:30450 -> ('srs-gnb-du1-proxy.ran.svc.cluster.local', 30450)
  == load /apps/edgeric_rt/rt_deployment.yaml ==
    jrtc: Running Python script: /apps/edgeric_rt/rt_bridge_app.py
    jrtc: Calling Python function /apps/edgeric_rt/rt_bridge_app.py...
    jrtc: [rt_bridge] starting, conf={'inline': 'off', 'lead': '1', 'cpu': '', 'fifo': '0', 'stats_s': '5'}
    jrtc: 2026-10-08 04:57:39 - jrtc_app - INFO - b'rt_bridge':: App initialization started
    jrtc: 2026-10-08 04:57:39 - jrtc_app - INFO - b'rt_bridge':: App initialization completed successfully
    jrtc: [rt_bridge] running: inline=off lead=1 run_dir=/apps/edgeric_rt/run

RAN UP. Broker for 4 UE(s); gNB connected to the AMF.
  UEs     : bash scripts/setup_zmq_chan_demo.sh 4 --ues [--channel FILE | --traces FILE]   (another terminal)
  console : bash scripts/gnb_console.sh

--== OCUDU gNB (commit ) ==--

Lower PHY in executor sequential baseband mode.
Available radio types: zmq and realtime_loopback.
Cell pci=1, bw=20 MHz, 1T1R, dl_arfcn=632628 (n78), dl_freq=3489.42 MHz, dl_ssb_arfcn=632256, ul_freq=3489.42 MHz

N2: Connection to AMF on open5gs-amf-ngap.open5gs.svc.cluster.local:38412 completed
Remote control server listening on 127.0.0.1:55555
==== gNB started ===
Type <h> to view help

Once the UEs attach (Terminal 2) and traffic flows (Terminal 3), the console prints one row per UE every second: on the DL side the CQI, MCS, bit rate (brate), HARQ acks and the backlog (dl_bs):

          |--------------------DL---------------------|-------------------------------UL-----------------------------
 pci rnti | cqi  ri  mcs  brate   ok  nok  (%)  dl_bs | pusch  rsrp  ri  mcs  brate   ok  nok  (%)    bsr     ta  phr
   1 4601 |   7 1.0    4   1.9M  288   22   7%  6.18M |  24.7 -36.7   1   23   104k   24    3  11%      0   261n   38
   1 4602 |   5 1.0    1   1.1M  466    0   0%  6.18M |  24.6 -36.7   1   22  96.3k   22    0   0%      0   260n   38
   1 4603 |  15 1.0   18   4.2M  140    0   0%  6.18M |  24.4 -36.7   1   22   103k   23    0   0%      0   261n   38
   1 4604 |   5 1.0    1   1.2M  484    0   0%  6.17M |  25.3 -35.7   1   25   107k   24    0   0%      0   261n   38
   1 4601 |   5 1.0    1   1.2M  543    0   0%  6.18M |  24.5 -36.7   1   22   101k   23    0   0%      0   260n   38
   1 4602 |   7 1.0    4   2.4M  353   15   4%  6.17M |  24.5 -36.7   1   23   112k   25    1   3%      0   261n   38
   1 4603 |  15 1.0   19   4.9M  155    0   0%  6.17M |  24.7 -36.7   1   23   100k   23    0   0%      0   260n   38
   1 4604 |   7 1.0    4   2.3M  303   31   9%  6.18M |  25.3 -35.8   1   25   103k   23    0   0%      0   260n   38

Ctrl-C leaves the console and the RAN keeps running; bash scripts/gnb_console.sh reopens it.

Terminal 2: UEs

cd <your clone of edgeric-ocudu-jbpf>
export KUBECONFIG="$(k3d kubeconfig write janus-cluster)"
bash scripts/setup_zmq_chan_demo.sh 4 --ues --traces duranta-oai-ue/ue_traces_cqi_4ue.conf
bash scripts/ue_rnti_map.sh 4

--ues starts the four UEs against Terminal 1’s broker and gNB and waits until every UE attaches, about 20 s. Each UE then starts its CQI walk at the same instant: ue_traces_cqi_4ue.conf gives every UE an independent walk over CQI 4–15, so the best UE keeps changing. ue_rnti_map.sh maps ue1..ue4 to their C-RNTIs, so the muApps and the dashboard can name the UEs. The UEs join a RAN once: to restart them, restart Terminal 1, then run --ues again.

  traces from attach: ue1 cqi_walk_1  ue2 cqi_walk_2  ue3 cqi_walk_3  ue4 cqi_walk_4
== [1-6/7] the RAN of the last --ran ==
  broker pid 52540 for 4 UE(s), UL noise -65; gNB up; telemetry off
== [7/7] 4 UE(s) ==
  ue1: IMSI 999700000000001  chan: distance=50,speed=0,min_distance=40,max_distance=60,dl_snr_ref=30,ul_snr_ref=30,seed=1,jitter_db=0,trace_ctl=/tmp/traces/ue1.ctl,ul_noise_dbfs=-65
  ue2: IMSI 999700000000002  chan: distance=50,speed=0,min_distance=40,max_distance=60,dl_snr_ref=30,ul_snr_ref=30,seed=2,jitter_db=0,trace_ctl=/tmp/traces/ue2.ctl,ul_noise_dbfs=-65
  ue3: IMSI 999700000000003  chan: distance=50,speed=0,min_distance=40,max_distance=60,dl_snr_ref=30,ul_snr_ref=30,seed=3,jitter_db=0,trace_ctl=/tmp/traces/ue3.ctl,ul_noise_dbfs=-65
  ue4: IMSI 999700000000004  chan: distance=50,speed=0,min_distance=40,max_distance=60,dl_snr_ref=30,ul_snr_ref=30,seed=4,jitter_db=0,trace_ctl=/tmp/traces/ue4.ctl,ul_noise_dbfs=-65
  tune: gnb + broker threads SCHED_FIFO; gnb, broker, UEs on CPUs 16-31,48-63

################ verify ################
  ue1 ip=10.45.0.74  t 6.0 s, d 50.0 m, DL SNR 30.0 dB (ref -27.3 dBFS), UL SNR 30.0 dB, UL gain 8.4 dB
  ue2 ip=10.45.0.76  t 6.0 s, d 50.0 m, DL SNR 30.0 dB (ref -27.3 dBFS), UL SNR 30.0 dB, UL gain 8.4 dB
  ue3 ip=10.45.0.73  t 6.0 s, d 50.0 m, DL SNR 30.0 dB (ref -27.3 dBFS), UL SNR 30.0 dB, UL gain 8.4 dB
  ue4 ip=10.45.0.75  t 6.0 s, d 50.0 m, DL SNR 30.0 dB (ref -27.3 dBFS), UL SNR 30.0 dB, UL gain 9.4 dB

== traces: duranta-oai-ue/ue_traces_cqi_4ue.conf ==
  copied cqi_walk_1.csv
  copied cqi_walk_2.csv
  copied cqi_walk_3.csv
  copied cqi_walk_4.csv
ue1 -> cqi_walk_1
ue2 -> cqi_walk_2
ue3 -> cqi_walk_3
ue4 -> cqi_walk_4
  at t 7.0 s: ue1, ue2, ue3, ue4 switch at t 10.0 s
    ue1: trace cqi_walk_1 (3000 rows, looping) from t 10.0 s (set at t 8.0 s)
    ue2: trace cqi_walk_2 (3000 rows, looping) from t 10.0 s (set at t 8.0 s)
    ue3: trace cqi_walk_3 (3000 rows, looping) from t 10.0 s (set at t 8.0 s)
    ue4: trace cqi_walk_4 (3000 rows, looping) from t 10.0 s (set at t 7.9 s)
  now:
    ue1: t 11.0 s, trace cqi_walk_1 row 9 (T 10.0 s), DL SNR 4.0 dB (ref -27.3 dBFS), UL SNR 20.0 dB, UL gain -1.6 dB
    ue2: t 11.0 s, trace cqi_walk_2 row 9 (T 10.0 s), DL SNR 10.5 dB (ref -27.3 dBFS), UL SNR 20.0 dB, UL gain -1.6 dB
    ue3: t 11.0 s, trace cqi_walk_3 row 9 (T 10.0 s), DL SNR 1.4 dB (ref -27.3 dBFS), UL SNR 20.0 dB, UL gain -1.6 dB
    ue4: t 11.0 s, trace cqi_walk_4 row 9 (T 10.0 s), DL SNR 2.0 dB (ref -27.3 dBFS), UL SNR 20.0 dB, UL gain -0.6 dB

SETUP DONE. 4 UE(s) attached.
  traffic : bash scripts/traffic_nue.sh start     (DL iperf3, UPF -> every UE)
  rates   : bash scripts/traffic_nue.sh status    (per-UE + total, measured at the UE)
  channel : kubectl exec -n ran srs-gnb-du1-0 -c durue1 -- grep 'ZMQ chan' /tmp/ues/ue1.log | tail
  traces  : bash scripts/trace_ctl.sh status | set <ues> <trace> | stop <ues> | list
  stop    : bash scripts/traffic_nue.sh stop && bash scripts/stop_demo.sh
ue1 0x4601
ue2 0x4602
ue3 0x4603
ue4 0x4604
wrote <your clone of edgeric-ocudu-jbpf>/jrtc-apps/jrtc_apps/edgeric_rt/run/ue_map.txt

Terminal 3: Traffic

cd <your clone of edgeric-ocudu-jbpf>
export KUBECONFIG="$(k3d kubeconfig write janus-cluster)"
bash scripts/traffic_nue.sh start --udp 100M
watch -n 2 bash scripts/traffic_nue.sh status

ue1: DL started  UPF -> 10.45.0.74:5201  (udp 100M, 3600s)
ue2: DL started  UPF -> 10.45.0.76:5202  (udp 100M, 3600s)
ue3: DL started  UPF -> 10.45.0.73:5203  (udp 100M, 3600s)
ue4: DL started  UPF -> 10.45.0.75:5204  (udp 100M, 3600s)
Give TCP ~10 s to ramp, then: bash scripts/traffic_nue.sh status

  ue1        1.9 Mbit/s  loss 98.1%  (mean of last 10 s at the UE)
  ue2        4.3 Mbit/s  loss 95.7%  (mean of last 10 s at the UE)
  ue3        4.7 Mbit/s  loss 95.2%  (mean of last 10 s at the UE)
  ue4        2.4 Mbit/s  loss 97.6%  (mean of last 10 s at the UE)
  total     13.3 Mbit/s

Terminal 4: Grafana

cd <your clone of edgeric-ocudu-jbpf>
export KUBECONFIG="$(k3d kubeconfig write janus-cluster)"
bash scripts/dashboard_realtime_scheduling.sh load

== codelet -> srs-gnb-du1-0/ocudujbpf:/codelets/dashboard_realtime_scheduling ==
== jbpf LCM forwarder in jrtc-0 ==
  fwd30450.py already running
== load /apps/dashboard_realtime_scheduling/deployment.yaml ==
  gnb: 2026-10-08T05:00:19.487221Z [JBPF][CORE][INFO]: Codelet created and loaded successfully: rts_stats
  jrtc: [rts] writing to http://victoria-metrics.ran.svc.cluster.local:8428/write; UE names from /apps/edgeric_rt/run/ue_map.txt; core events on udp 127.0.0.1:30503
  jrtc: [rts] /apps/edgeric_rt/run/ue_map.txt: 4 UEs
== UE names ==
  ue1 0x4601
  ue2 0x4602
  ue3 0x4603
  ue4 0x4604
  wrote <your clone of edgeric-ocudu-jbpf>/jrtc-apps/jrtc_apps/edgeric_rt/run/ue_map.txt
  UE 1  IMSI 999700000000001  IP 10.45.0.74   RAN_UE_NGAP_ID 0  AMF_UE_NGAP_ID 72
  UE 2  IMSI 999700000000002  IP 10.45.0.76   RAN_UE_NGAP_ID 2  AMF_UE_NGAP_ID 74
  UE 3  IMSI 999700000000003  IP 10.45.0.73   RAN_UE_NGAP_ID 1  AMF_UE_NGAP_ID 73
  UE 4  IMSI 999700000000004  IP 10.45.0.75   RAN_UE_NGAP_ID 3  AMF_UE_NGAP_ID 75
  -> 4 core events to the dashboard xApps (jrtc-0, udp 127.0.0.1:30502 dashboard, :30503 dashboard-realtime-scheduling)
== Grafana ==
  grafana-upt-dashboard/rt-scheduling-dashboard.json updated (Grafana picks it up within 1-2 min)
== tcp_probe (TCP, tcpdump on the UPF) and ue_rx_probe (UDP, the UE receivers' logs) ==
  tcp_probe started (--map 10.45.0.74=1,10.45.0.76=2,10.45.0.73=3,10.45.0.75=4): [tcp_probe] capturing on open5gs-upf-59bcf7bbb8-v7djt:ogstun
  ue_rx_probe already running (434770)
Dashboard: http://localhost:30490/d/rt-scheduling

load puts the rts_stats codelet on the mac_sched_slot_report hook and its xApp in jrtc-0, names the UEs from the core down to their C-RNTIs, and starts the probes that measure what the UEs receive. Open http://localhost:30490/d/rt-scheduling (“EdgeRIC real-time scheduling”). From a laptop, forward the port first: ssh -N -L 30490:localhost:30490 <user>@<testbed-host>.

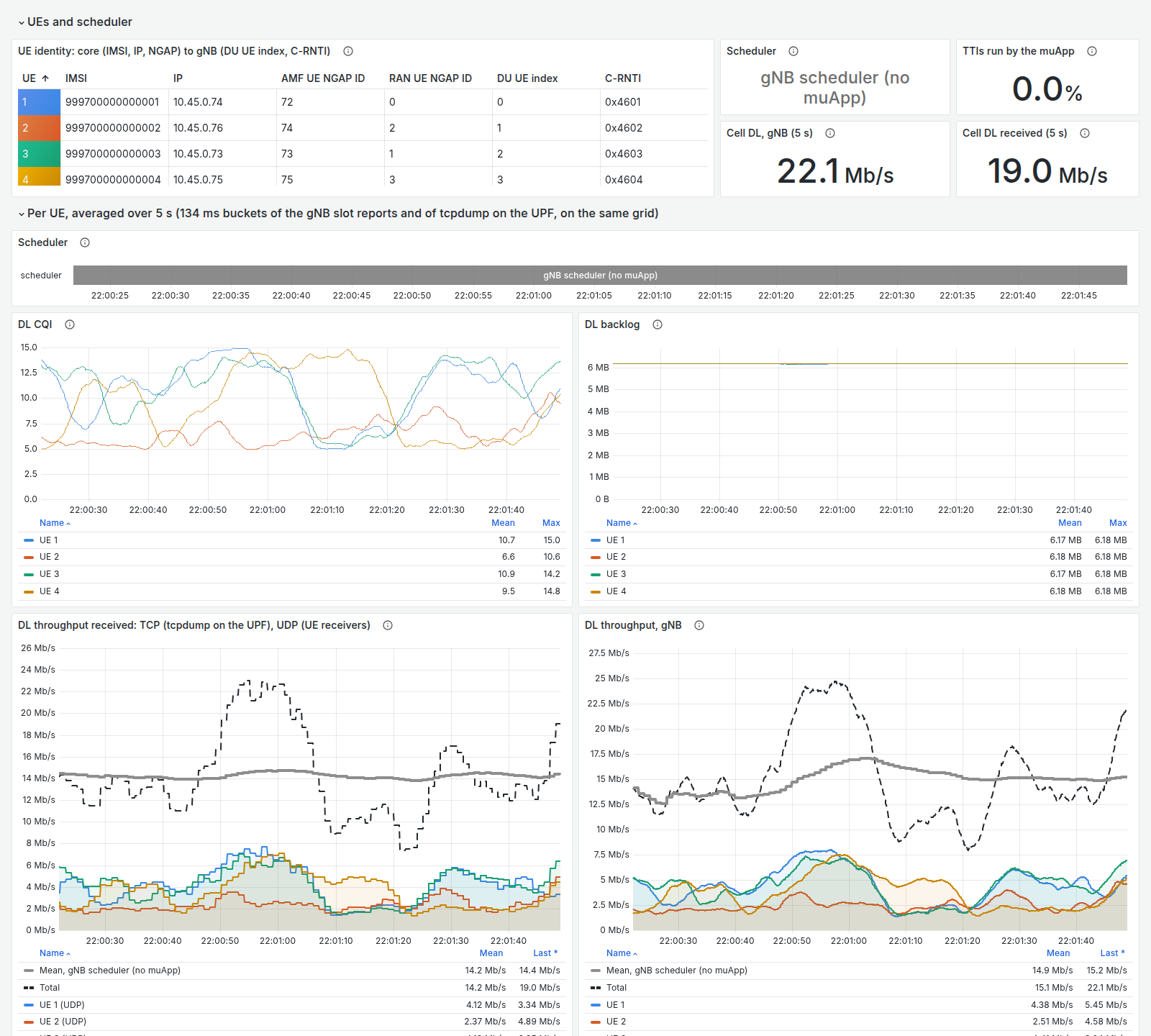

The EdgeRIC real-time scheduling dashboard with the gNB's own scheduler in charge: the UE identity table for four UEs, a gray scheduler strip, four CQI walks between 5 and 15, full DL backlogs of 6.2 MB and about 14 Mbit/s of cell throughput

The dashboard before any muApp runs.

  • Top row: each UE from the core (IMSI, IP) down to the gNB (C-RNTI), the scheduler in charge, the share of TTIs a muApp ran, and the cell’s DL throughput at the gNB and as received.

  • Per UE: the CQI walks, the DL backlog (full at 6.2 MB), and the DL throughput, received and at the gNB. The thick gray line is the mean under the gNB’s own scheduler.

2. Scheduling muApps

Terminal 5: Scheduler muApp

Open a fifth terminal, and keep Terminal 2 free for channel changes (Demo 1’s trace_ctl.sh). The muApp runs in pod edgeric-0: start a scheduler, follow its log, then switch it live while you watch Grafana.

cd <your clone of edgeric-ocudu-jbpf>
export KUBECONFIG="$(k3d kubeconfig write janus-cluster)"
bash scripts/edgeric_muapp.sh start sched --scheduler maxweight --tag demo2-sched
bash scripts/edgeric_muapp.sh logs sched      # Ctrl-C stops following; the muApp keeps running

started sched (pid 15979)
[sched] maxweight | alloc single | lead 1 | strict | hold 0 | min-share 0.02 | reports from /apps/edgeric_rt/run/muapp.sock | run demo2-sched
[sched maxweight] tti=379461 |  29.1 Mbps (ue1   1.0 ue2   1.1 ue3  27.0 ue4   0.0) | DL HIT  99.7% of 7000 | report->action p50 122 p99 213 us | slack p1 56 us | RB use 1.05 | lazy-RIC 41 lost 9
[sched maxweight] tti=389461 |  40.4 Mbps (ue1   0.0 ue2  36.9 ue3   3.5 ue4   0.0) | DL HIT  99.9% of 7000 | report->action p50 114 p99 182 us | slack p1 75 us | RB use 1.02 | lazy-RIC 46 lost 9
[sched maxweight] tti=399462 |  43.4 Mbps (ue1   0.0 ue2  43.3 ue3   0.0 ue4   0.0) | DL HIT  99.8% of 7001 | report->action p50 116 p99 214 us | slack p1 70 us | RB use 1.05 | lazy-RIC 56 lost 10
[sched maxweight] tti=409461 |  28.7 Mbps (ue1   0.0 ue2  23.8 ue3   1.5 ue4   3.4) | DL HIT  99.8% of 6999 | report->action p50 118 p99 219 us | slack p1 63 us | RB use 1.03 | lazy-RIC 70 lost 10

Every 5 s (10,000 TTIs) the muApp logs:

  • the cell’s DL throughput, total and per UE;

  • DL HIT: the share of DL slots that applied its action in exactly the TTI the action targeted;

  • the report-to-action latency, p50 and p99;

  • lazy-RIC: reports that arrived while it was still deciding. It read them but acted only on the newest.

Max-weight gives each slot to the UE with the largest CQI × backlog, so the per-UE split swings from one log line to the next as the CQI walks move.

Press Ctrl-C to leave the log (the muApp keeps running), then switch schedulers live, a minute or so apart:

bash scripts/edgeric_muapp.sh ctl "scheduler maxcqi"
bash scripts/edgeric_muapp.sh ctl "scheduler pf"
bash scripts/edgeric_muapp.sh ctl "scheduler rr"
bash scripts/edgeric_muapp.sh ctl "scheduler rl models/ppo_walk4/last.npz"
bash scripts/edgeric_muapp.sh ctl "scheduler stock"

Each ctl answers at once, and the switch takes effect at the next report:

ok at RANtime 515487: maxcqi | alloc single | lead 1 | strict | hold 0 | min-share 0.02 | sent 154790 lazy-RIC 182 lost 300

The muApp’s log marks every switch. rl models/ppo_walk4/last.npz runs a PPO policy trained on these same CQI walks, shipped in edgeric-rt/models/. Its decisions take about twice as long as the classic schedulers’, so a few more DL slots miss their TTI. stock sends no actions, so the gNB’s own scheduler runs every slot (DL HIT 0 %):

[sched] switched at RANtime 515487: maxcqi | alloc single | lead 1 | strict | hold 0 | min-share 0.02
[sched rl models/ppo_walk4/last.npz (cat/set, argmax)] tti=978979 |  29.5 Mbps (ue1   0.4 ue2   0.3 ue3  28.7 ue4   0.1) | DL HIT  97.6% of 7000 | report->action p50 251 p99 440 us | slack p1 14 us | RB use 1.05 | lazy-RIC 694 lost 2797
[sched stock] tti=1128929 |  14.0 Mbps (ue1   4.5 ue2   2.7 ue3   4.2 ue4   2.6) | DL HIT   0.0% of 7000 | report->action p50 nan p99 nan us | slack p1 nan us | RB use 1.03 | lazy-RIC 1055 lost 3993

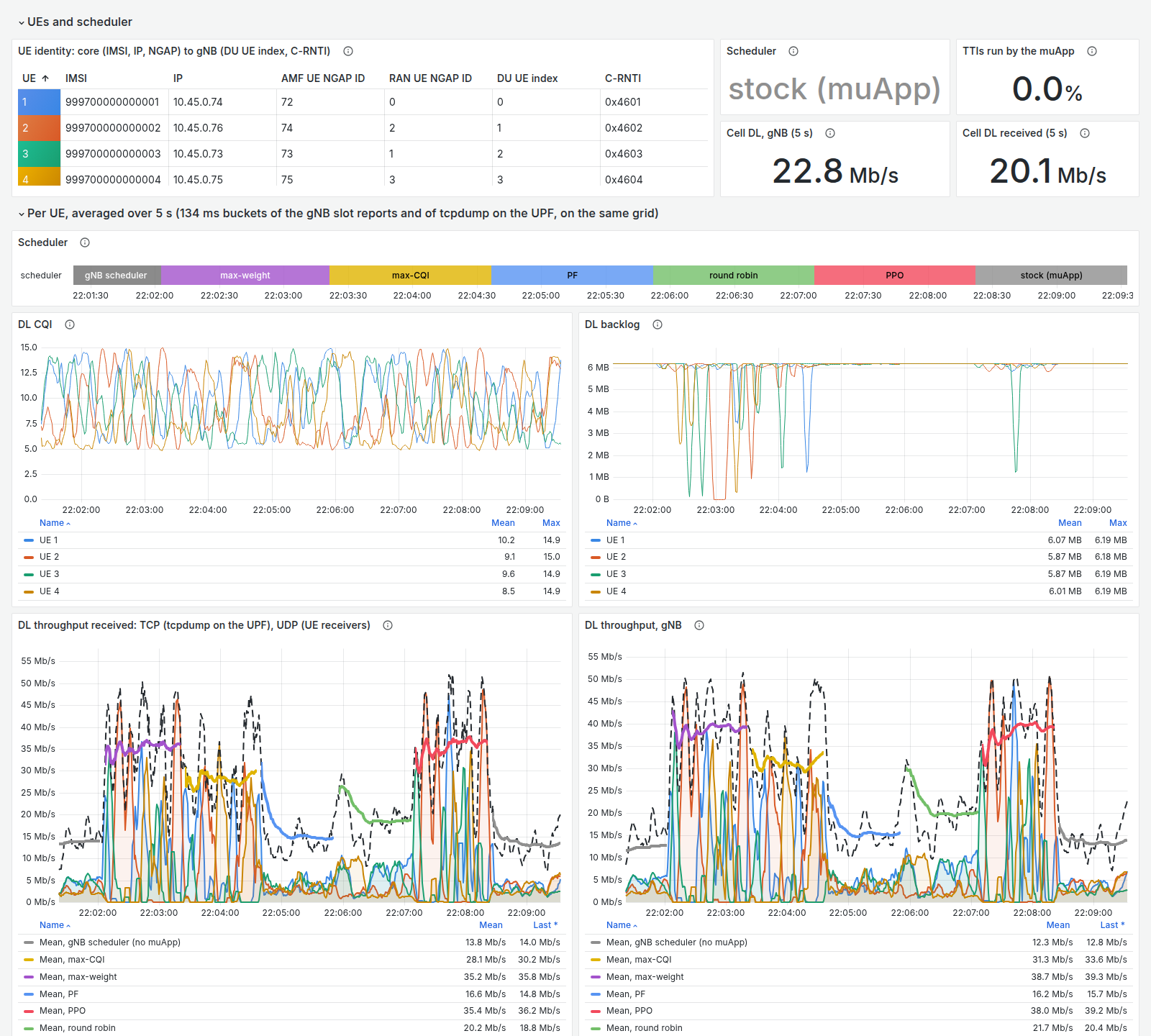

The dashboard over six schedulers in a row: the scheduler strip shows max-weight, max-CQI, proportional fair, round robin, PPO and stock in turn, and the throughput panels show each scheduler's mean as a thick line, highest for max-weight and PPO

Six schedulers, 75 s each, after the gNB’s own scheduler (gray, left).

  • Strip: which scheduler was in charge.

  • Thick lines: each scheduler’s mean throughput. Received in this run: max-weight 35 Mbit/s, PPO 35, max-CQI 28, round robin 20, proportional fair 17, and the gNB’s own scheduler 14.

Each scheduler saw a different stretch of the CQI walks, so for a controlled comparison use edgeric_eval.sh. It is in the Reference, with the schedulers and the options of start sched.

3. Training the RL Policy

Terminal 6: Training

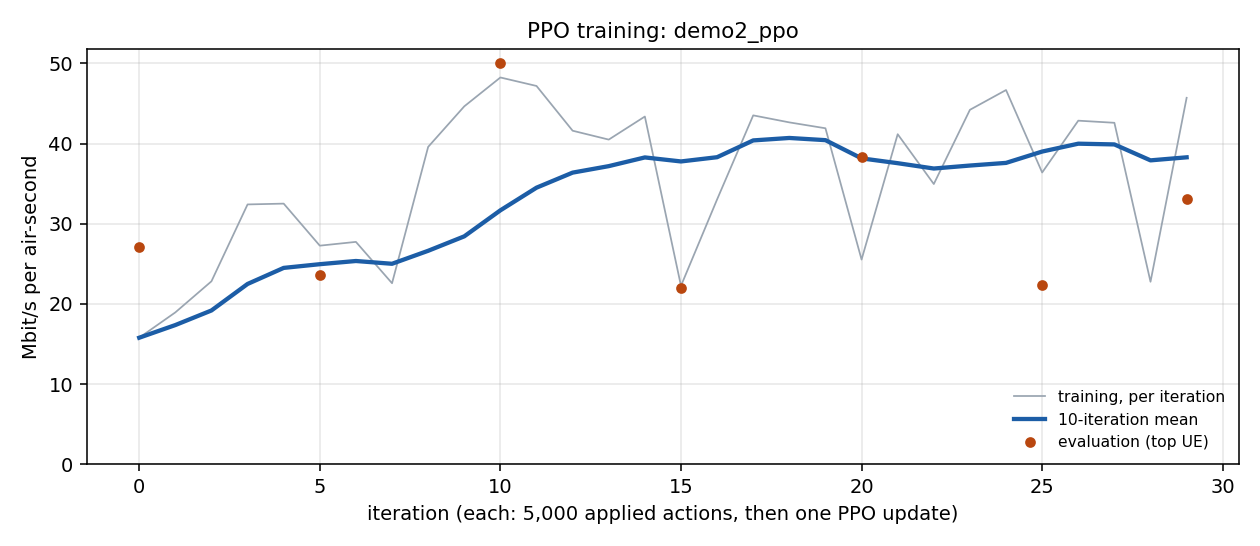

Open a sixth terminal. PPO learns which UE should get each slot, online against the live gNB. The bridge feeds one muApp at a time, so stop the scheduler first.

cd <your clone of edgeric-ocudu-jbpf>
export KUBECONFIG="$(k3d kubeconfig write janus-cluster)"
bash scripts/edgeric_muapp.sh stop sched
bash scripts/edgeric_muapp.sh start train --ues 4 --iters 30 --tag demo2_ppo
bash scripts/edgeric_muapp.sh logs train

stopped sched
started train (pid 16174)
[train] demo2_ppo: 4 UEs, action single, arch set, 30 iterations x 5000 applied TTIs, lead 1, strict
[train] it   0 | train  15.8 Mbps (HIT  97.6%) | best  25.0% eff 0.442 | eval  27.2 Mbps best 100.0% | reward 0.239 | p_top 0.35 | kl 0.0197 | collect 4.0s update 0.9s
[train] it   1 | train  19.0 Mbps (HIT  97.1%) | best  33.6% eff 0.584 | eval   nan Mbps best   nan% | reward 0.286 | p_top 0.41 | kl 0.0143 | collect 3.8s update 0.9s
[train] it   2 | train  22.8 Mbps (HIT  98.7%) | best  43.7% eff 0.793 | eval   nan Mbps best   nan% | reward 0.342 | p_top 0.37 | kl 0.0084 | collect 3.7s update 0.9s
...
[train] it   9 | train  44.6 Mbps (HIT  95.6%) | best  97.5% eff 0.992 | eval   nan Mbps best   nan% | reward 0.690 | p_top 0.90 | kl 0.0009 | collect 3.8s update 0.9s
[train] it  10 | train  48.2 Mbps (HIT  99.0%) | best  97.6% eff 0.996 | eval  50.0 Mbps best 100.0% | reward 0.723 | p_top 0.65 | kl 0.0001 | collect 3.7s update 0.9s
...
[train] it  29 | train  45.7 Mbps (HIT  99.4%) | best  99.5% eff 0.998 | eval  33.1 Mbps best 100.0% | reward 0.684 | p_top 0.93 | kl 0.0007 | collect 3.7s update 0.9s
[train] done: best eval 50.02 Mbps -> /edgeric/runs/demo2_ppo/best.npz

Each iteration collects 5000 TTIs in which the gNB applied the policy’s sampled action (collect, about 3.7 s). It then pauses while PyTorch updates the policy (update, about 0.9 s); the gNB’s own scheduler runs meanwhile. Each line shows:

  • train: the cell’s DL throughput while the policy explores;

  • best and eff: the share of slots the policy gave to a UE with the highest CQI, and the CQI efficiency of its choice relative to that UE. These show convergence on any stretch of the channel, while throughput swings with the CQI walks;

  • every 5 iterations, eval: the policy without exploration, giving each slot to its top UE;

  • p_top: the policy’s mean probability for its top UE, which rises as it commits.

Thirty iterations take about 3 minutes. Here best climbed from 25 % to about 95 % within 10 iterations.

Definition

State

per UE: CQI / 15 and log(1 + backlog) / log(1 + 8 MB)

Action

the UE that gets the slot (--action single), or RB shares (--action shared)

Reward

DRB bytes scheduled in the TTI the action was applied in

Network

one 64-64 network scores every UE from its own state plus the mean and max over all UEs (--arch set)

Plot the run on the host (needs matplotlib):

python3 edgeric-rt/tools/plot_training.py edgeric-rt/runs/demo2_ppo

{"iterations": 30, "eff_min": 0.97, "reached_at_iter": 16, "held_from_iter": 16, "ma10_eff_min_after": 0.9707, "ma10_best_min_after": 91.41, "share_iters_eff_ok_after": 0.857, "mean_eff_after": 0.9839, "mean_best_pct_after": 95.81, "final_train_best_pct": 95.14, "final_train_eff": 0.9826, "eval_best_pct_min": 100.0, "final_entropy": 0.108}
wrote edgeric-rt/runs/demo2_ppo/train_curve.png and .svg
Cell throughput of the PPO run over 30 iterations: per iteration, its 10-iteration mean rising from 16 to about 38 Mbit/s, and an evaluation every 5 iterations

The throughput panel of train_curve.png: per iteration (gray), its 10-iteration mean (blue) and the evaluations (dots).

When the log shows [train] done, press Ctrl-C to leave it, then run the trained policy in the loop:

bash scripts/edgeric_muapp.sh start sched --scheduler rl --model runs/demo2_ppo/last.npz --tag demo2-ppo
bash scripts/edgeric_muapp.sh logs sched

started sched (pid 16188)
[sched] rl runs/demo2_ppo/last.npz (cat/set, argmax) | alloc single | lead 1 | strict | hold 0 | min-share 0.02 | reports from /apps/edgeric_rt/run/muapp.sock | run demo2-ppo
[sched rl runs/demo2_ppo/last.npz (cat/set, argmax)] tti=1823689 |  22.6 Mbps (ue1   8.1 ue2  12.3 ue3   2.0 ue4   0.2) | DL HIT  99.2% of 7000 | report->action p50 238 p99 369 us | slack p1 14 us | RB use 1.04 | lazy-RIC 501 lost 285
[sched rl runs/demo2_ppo/last.npz (cat/set, argmax)] tti=1833617 |  25.4 Mbps (ue1   0.1 ue2  22.4 ue3   0.1 ue4   2.9) | DL HIT  97.9% of 6947 | report->action p50 245 p99 409 us | slack p1 13 us | RB use 1.02 | lazy-RIC 526 lost 293
[sched rl runs/demo2_ppo/last.npz (cat/set, argmax)] tti=1843617 |  46.3 Mbps (ue1   0.0 ue2  27.6 ue3   0.0 ue4  18.6) | DL HIT  98.4% of 7000 | report->action p50 248 p99 425 us | slack p1 11 us | RB use 1.03 | lazy-RIC 549 lost 293

last.npz is the final policy. best.npz is the one with the highest evaluation throughput, which also depends on the stretch of the channel the evaluation saw. Its decisions take about 250 µs (p50), against about 115 µs for the classic schedulers, and about 1–2 % of DL slots miss their TTI.

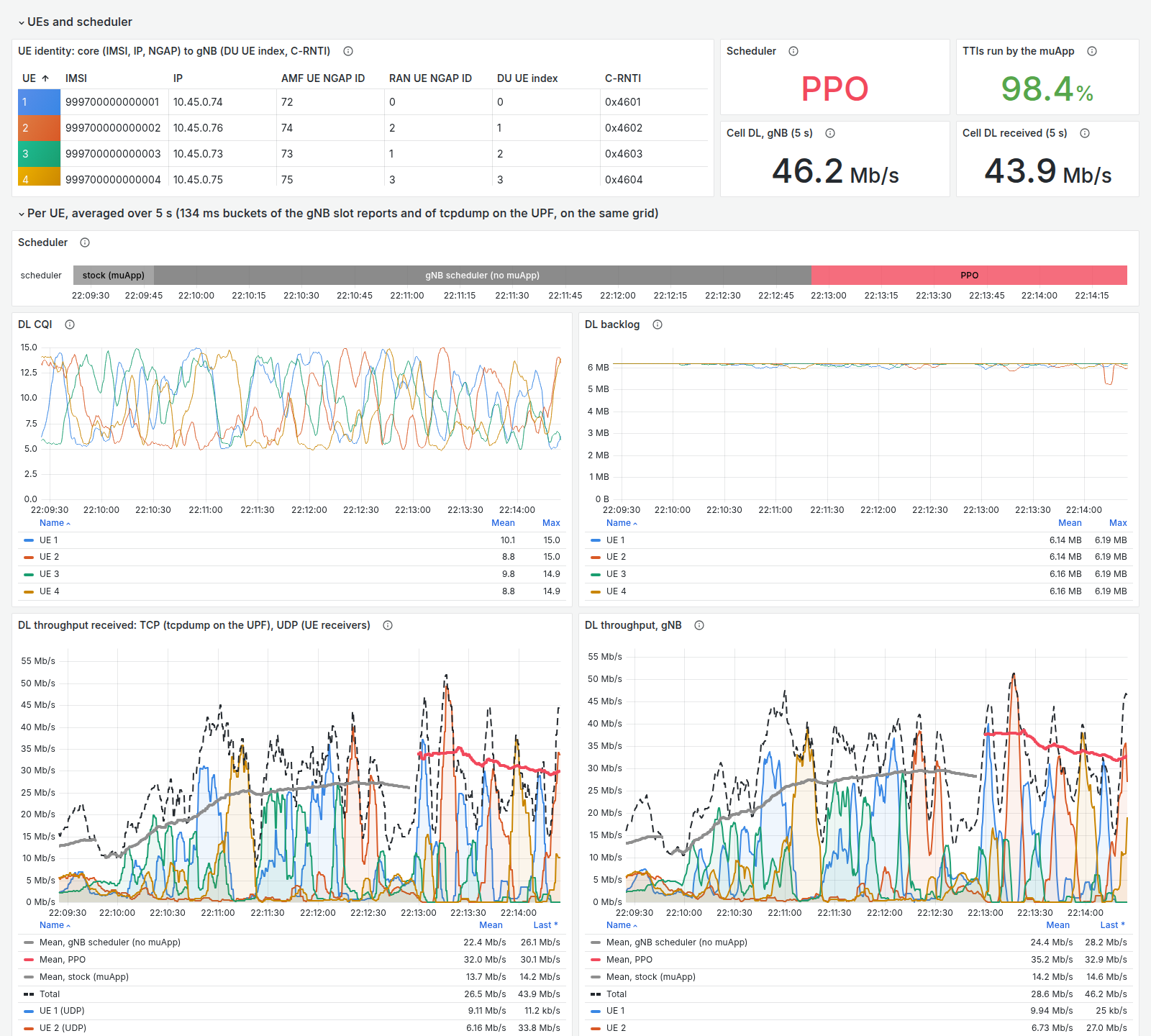

The dashboard during training and then the trained PPO policy: throughput climbing during training, then the PPO band in the scheduler strip with its mean line near 32 Mbit/s received, and 98.4 % of TTIs run by the muApp

Training, then the trained policy.

  • Training: the trainer reports no scheduler name, so the strip shows the gNB’s scheduler. Its actions still run in about 98 % of TTIs, and the throughput climbs as the policy learns.

  • Trained policy (red): 98.4 % of TTIs, with a mean near 32 Mbit/s received on this stretch of the walks.

4. Stop

bash scripts/edgeric_muapp.sh stop all
bash scripts/traffic_nue.sh stop
bash scripts/stop_demo.sh

Reference [To be updated]

Schedulers

Scheduler

Policy

stock

none: the gNB’s own scheduler

fixed --weights ue1=0.2,ue2=0.2,ue3=0.2,ue4=0.4

share: 20/20/20/40 % of the slots

rr

metric, all equal: the UEs with data in turn

pf

metric CQI / EWMA(CQI), proportional fair

maxcqi

metric CQI

bestcqi

metric CQI, always one UE per slot (the full-buffer throughput optimum)

maxweight

metric CQI × backlog

rl --model models/ppo_walk4/last.npz

a trained PPO policy: its top UE gets the slot (--rl-pick share for slot shares)

By default each scheduler gives one UE the whole slot (--alloc single), as the gNB’s own scheduler does with full buffers. Metric policies give the slot to the UE with the highest metric; share policies hand out whole slots in proportion to their weights. Model paths are relative to edgeric-rt/, which is /edgeric in the edgeric-0 container; trained models for the three scenarios ship in edgeric-rt/models/ (ppo_walk4, ppo_walk2, ppo_load8844).

Option

Effect

--alloc shared

split each slot’s RBs by weight among the weighted UEs (slows the ZMQ chain to about 88 % of real time with 4 UEs)

--lead N

target the first DL slot at least N TTIs ahead; about 30 emulates a near-RT RIC

--work-conserving

give RBs a UE cannot use to the UEs that can

--duration S, --tag NAME

run length and output name

Each run saves every TTI to edgeric-rt/runs/<tag>/ttis.npz with a summary.json, and pushes 10 Hz aggregates to VictoriaMetrics.

Channel scenarios

Table

Scenario

duranta-oai-ue/ue_traces_cqi_4ue.conf

4 UEs on independent CQI walks (this demo, and the RL scenario)

duranta-oai-ue/ue_traces_cqi_4ue_mob.conf

2 cars and 2 drones, from the EdgeRIC over-the-air recordings

duranta-oai-ue/ue_traces_cqi_s1.conf

2 UEs on CQI walks

duranta-oai-ue/ue_traces_cqi_s2.conf

2 UEs, one good and one bad channel

duranta-oai-ue/ue_traces_cqi_s3.conf

2 UEs, CQI drawn at random

Switch scenarios on the running UEs with bash scripts/trace_ctl.sh apply <table> (Demo 1).

Compare schedulers on the same channel

bash scripts/edgeric_eval.sh --duration 60 \
  rl:models/ppo_walk4/last.npz bestcqi maxcqi maxweight pf rr fixed:0.25,0.25,0.25,0.25 stock

Before each run the script re-applies the trace table, so every scheduler sees the same channel from t = 0. It ends with a table per scheduler: throughput per air time, total and per UE, Jain fairness, the share of DL slots applied in their exact TTI (DL HIT %), and report-to-action latency. Measured with four UEs on CQI walks, full-buffer UDP:

Scheduler

gNB Mbit/s

UDP Mbit/s

bestcqi

41.54

37.85

maxweight

40.91

37.42

PPO

40.80

36.89

rr

19.83

18.70

pf

17.33

16.01

stock (the gNB’s own)

15.49

14.76

For finite, unequal loads, edgeric_eval.sh --loads 8,8,4,4 drives one plain UDP flow per UE at those rates.

Measure the bare loop

bash scripts/edgeric_rt.sh load --inline fixed:0.2,0.2,0.2,0.4
kubectl exec -n ran jrtc-0 -c jrtc -- tail /tmp/edgeric_rt_bridge.log

In inline mode the bridge acts on every report by itself, without a muApp. Its log gives the DL HIT % and the report-to-action latency inside jrtc. Measured with four UEs:

Path

DL slots applied in their exact TTI

Report to action, p50 / p99

bridge acting inline (jbpf and jrtc only)

99.9–100 %

51 / 90 µs

muApp in edgeric-0, classic schedulers

99.8–99.9 %

110 / 180–210 µs

muApp in edgeric-0, PPO

98.1–98.5 %

250 / 390–430 µs

Notes

  • One report consumer. The bridge sends reports to one muApp socket: stop sched before train, and the reverse.

  • Keep jrtc light. Start the RAN with --edgeric and without --telemetry, so heavy Python xApps do not share the bridge’s GIL. The real-time scheduling dashboard is light enough to run beside it.

  • One scheduler controller. Unload the older edgeric_sched and edgeric_mcs sets while edgeric_rt is loaded; they act on the same scheduler.

  • PPO is slower than the classic schedulers (p50 about 250 µs against 110 µs), so 1.5–1.9 % of its DL slots miss their TTI and run the gNB’s own scheduler.
