AI-driven muApp for RAN Scheduling

EdgeRIC-RT puts a muApp in the gNB’s scheduling loop. Every 0.5 ms slot, the gNB reports the state of every UE. The muApp answers with an action for the next downlink slot, and the gNB applies it in exactly that slot. The muApp runs a PPO policy trained online against the live gNB, or a classic scheduler such as max-weight or proportional fair.

Code: edgeric-ocudu-jbpf (branch open-ai-ran-tutorial). Full guide: edgeric-rt.md.

EdgeRIC-RT Scheduling Loop

The EdgeRIC-RT loop across three pods. The gNB's rt_report codelet sends each slot's report through jbpf and the rt_bridge xApp in jrtc to the scheduler muApp. The muApp's action comes back through rt_bridge into the rt_ctrl codelet, which hands it to the MAC scheduler at the start of the next slot.

One turn of the loop. Blue carries the report up to the muApp, and orange carries the action back down. The numbers match the steps below.

  1. Report. At the end of slot t, the mac_sched_slot_report hook runs the rt_report codelet. Its report travels through jbpf and rt_bridge to the muApp.

  2. Decide. The muApp turns the newest report into a weight per UE for the next DL slot.

  3. Act. The action travels back through rt_bridge into rt_act_in, tagged with that slot.

  4. Apply. When that slot starts, rt_ctrl hands the action to the scheduler, which splits the slot’s RBs by the weights.

The whole loop must fit in one slot. A late action is dropped, and that slot runs the gNB’s own scheduler.

Scheduling Policies

Baselines

  • Max-weight: the slot goes to the UE with the largest CQI × backlog.

  • Max-CQI: the slot goes to the UE with the best CQI.

  • Proportional fair (PF): the slot goes to the UE whose CQI is highest relative to its average.

  • Round robin: the UEs with data take turns.

  • Default: the muApp runs but sends no action, so the gNB’s own scheduler runs every slot.

  • No muApp: the gNB’s own scheduler, with no muApp running.

RL-based Policy

The PPO policy. Each UE's CQI and backlog go through the same small network, which scores the UE. A softmax over the scores gives a probability per UE, and the UE with the highest probability gets the next slot. Each slot's reward is the bytes sent in it, and a PPO update every 5,000 slots replaces the network's weights.

The network sees each UE’s CQI and backlog, plus their mean and max over all UEs. Every UE goes through the same weights, so one policy works for any number of UEs.

train_ppo.py trains the policy online against the live gNB, and sched_muapp.py runs it. Each report echoes the action applied in its slot, so every reward is paired with the action that earned it.

Training curves for 4 and 2 UEs with full buffers. The share of slots given to a best-CQI UE starts at the random level, 25 % and 50 %, and passes 95 % within 10 iterations.

Training with full buffers, where the best choice is a UE with the best CQI. Both policies learn it within about 15 iterations, about a minute of live traffic.

Dashboard

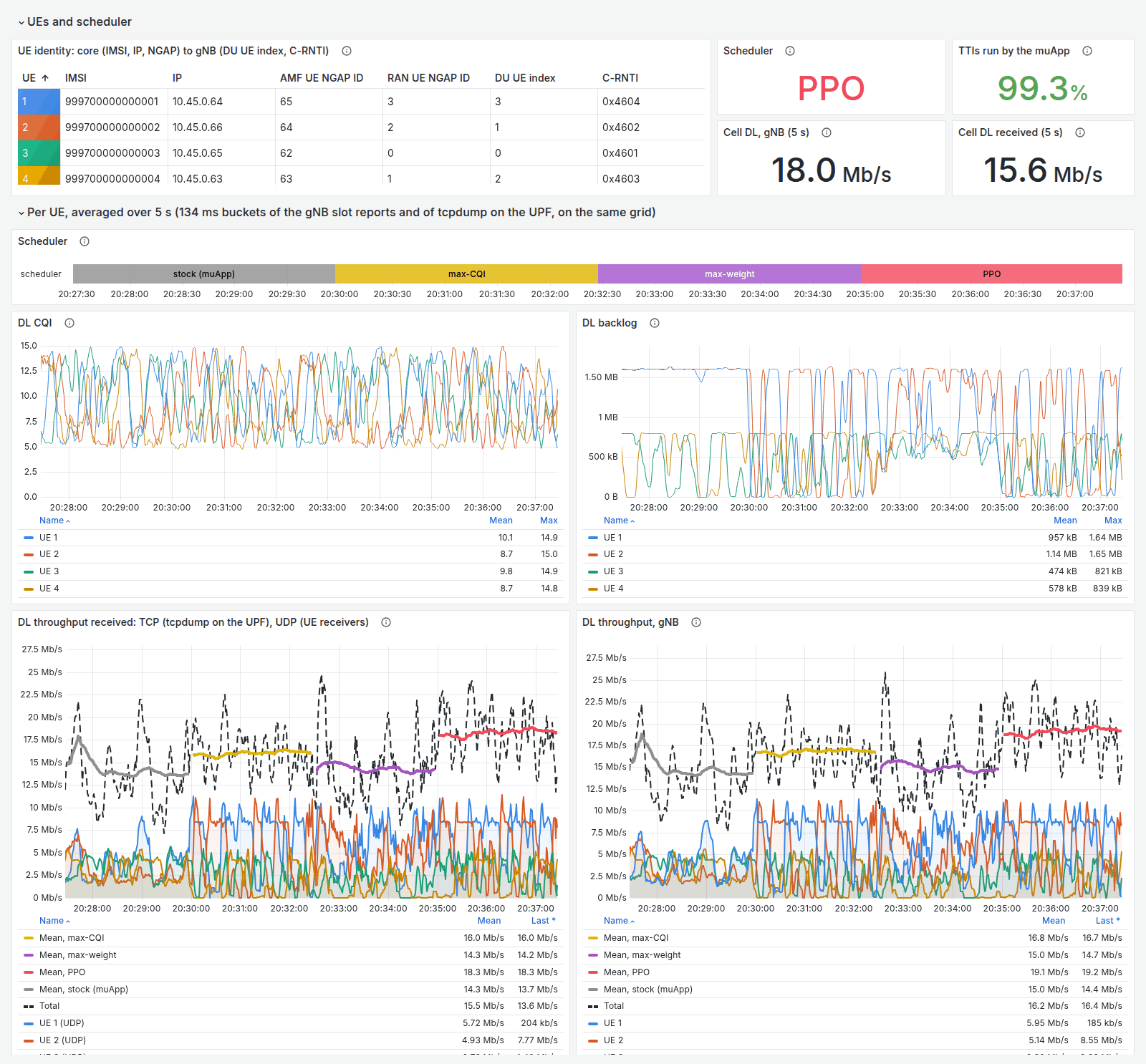

The Grafana dashboard during a live run at 8/8/4/4 Mbit/s. The scheduler strip shows the default scheduler, max-CQI, max-weight and PPO, 2.5 minutes each. On both throughput plots the thick mean line is highest under PPO, about 19 Mbit/s, against 14 to 17 for the others.

A live run at 8/8/4/4 Mbit/s: the default scheduler, max-CQI, max-weight and PPO, 2.5 minutes each. The thick line on each throughput plot is the mean under the policy that runs. Click to enlarge.

Throughput

Mean DL throughput per policy. With 2 UEs and full buffers, PPO reaches 26.4 Mbit/s, level with max-CQI and max-weight at 26.8, against 19.3 for PF, 18.4 for round robin and 16.1 for the default scheduler and for no muApp. With 4 UEs at 8/8/4/4 Mbit/s, PPO reaches 18.4 Mbit/s against 16.2 for max-CQI, 15.6 to 15.8 for PF, max-weight and round robin, 14.6 for the default scheduler and 14.4 with no muApp.

Mean DL throughput at the gNB over three 60 s runs per policy, each on the same channel replay (two runs for max-weight and round robin at 8/8/4/4). Error bars show one standard deviation across runs.

Timing

Report to action at the bridge, with 4 UEs and full-buffer UDP:

Path

p50 / p99

DL slots on time

rt_bridge alone, no muApp

51 / 90 µs

99.9–100 %

muApp, classic schedulers

110 / 180–210 µs

99.8–99.9 %

muApp, PPO

250 / 390–430 µs

98.1–98.5 %

Run It

On the cellular digital twin, after the one-time build in the guide:

# 4 UEs on CQI 4-15 channels, with the EdgeRIC-RT codelets and rt_bridge loaded
bash scripts/setup_zmq_chan_demo.sh 4 --edgeric \
    --traces duranta-oai-ue/ue_traces_cqi_4ue.conf
bash scripts/ue_rnti_map.sh 4                 # ue1..ue4 -> C-RNTI
bash scripts/traffic_nue.sh start --udp 100M   # full-buffer downlink

# run the trained PPO policy (or --scheduler maxweight, pf, rr, ...)
bash scripts/edgeric_muapp.sh start sched --scheduler rl --model models/ppo_walk4/last.npz
bash scripts/edgeric_muapp.sh logs sched       # Mbit/s per UE, slots on time, latency

# or train your own (one muApp at a time)
bash scripts/edgeric_muapp.sh stop sched
bash scripts/edgeric_muapp.sh start train --tag my_ppo   # policy lands in runs/my_ppo/
